Flush-mounted linear ventilation diffusers | LINEO PRO

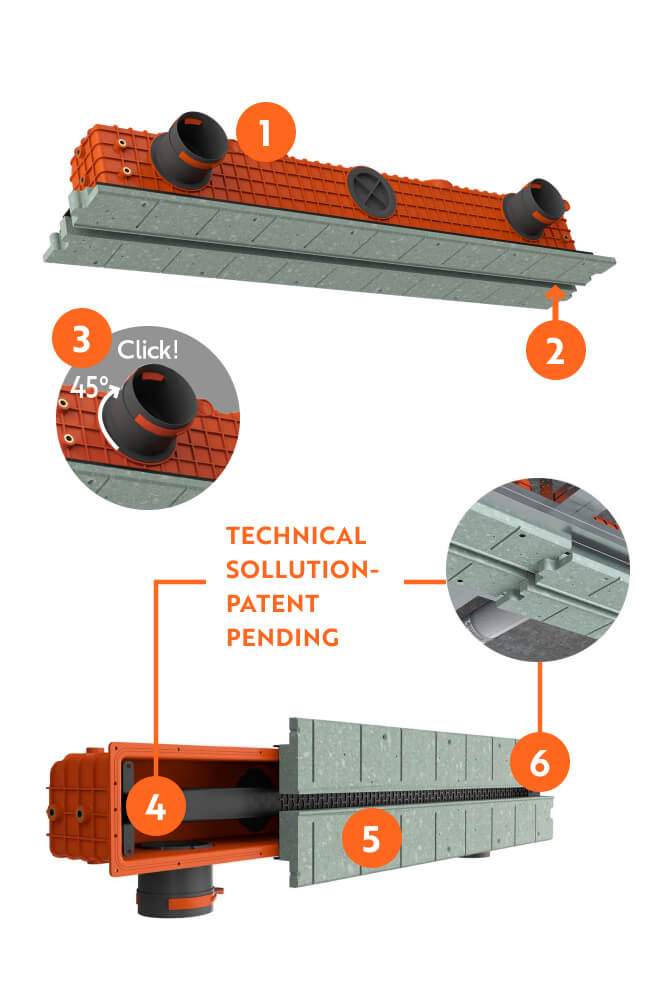

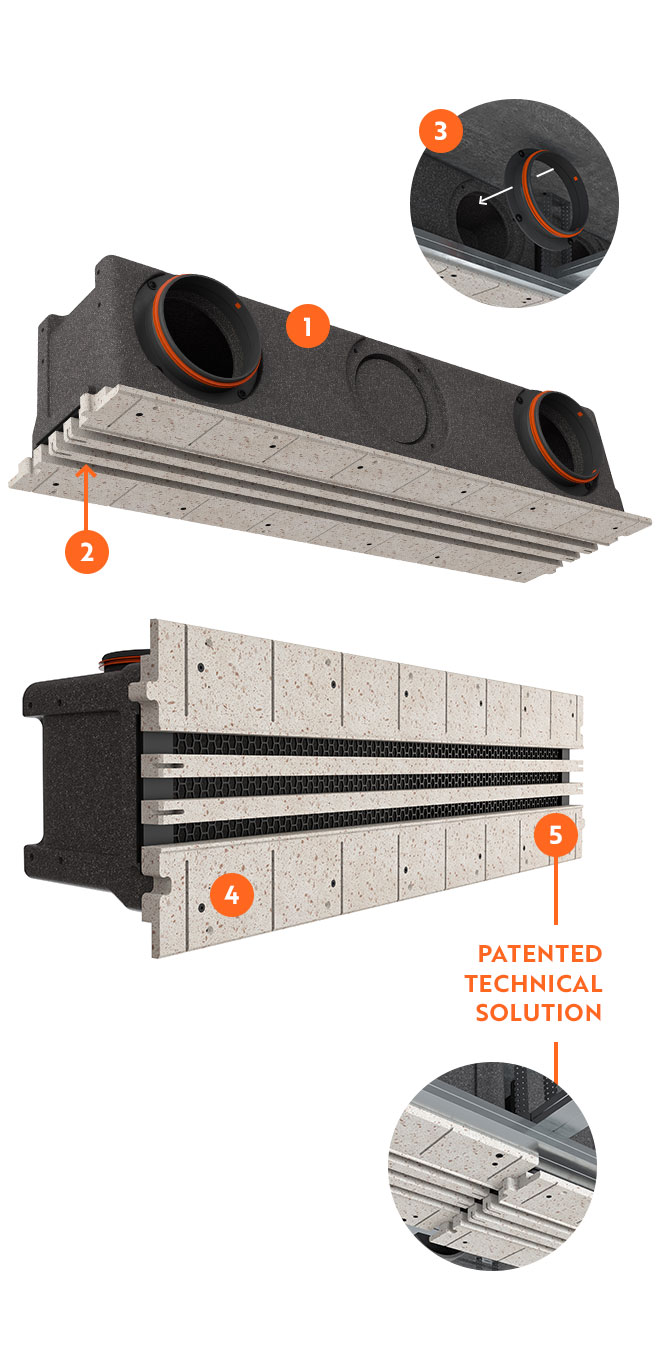

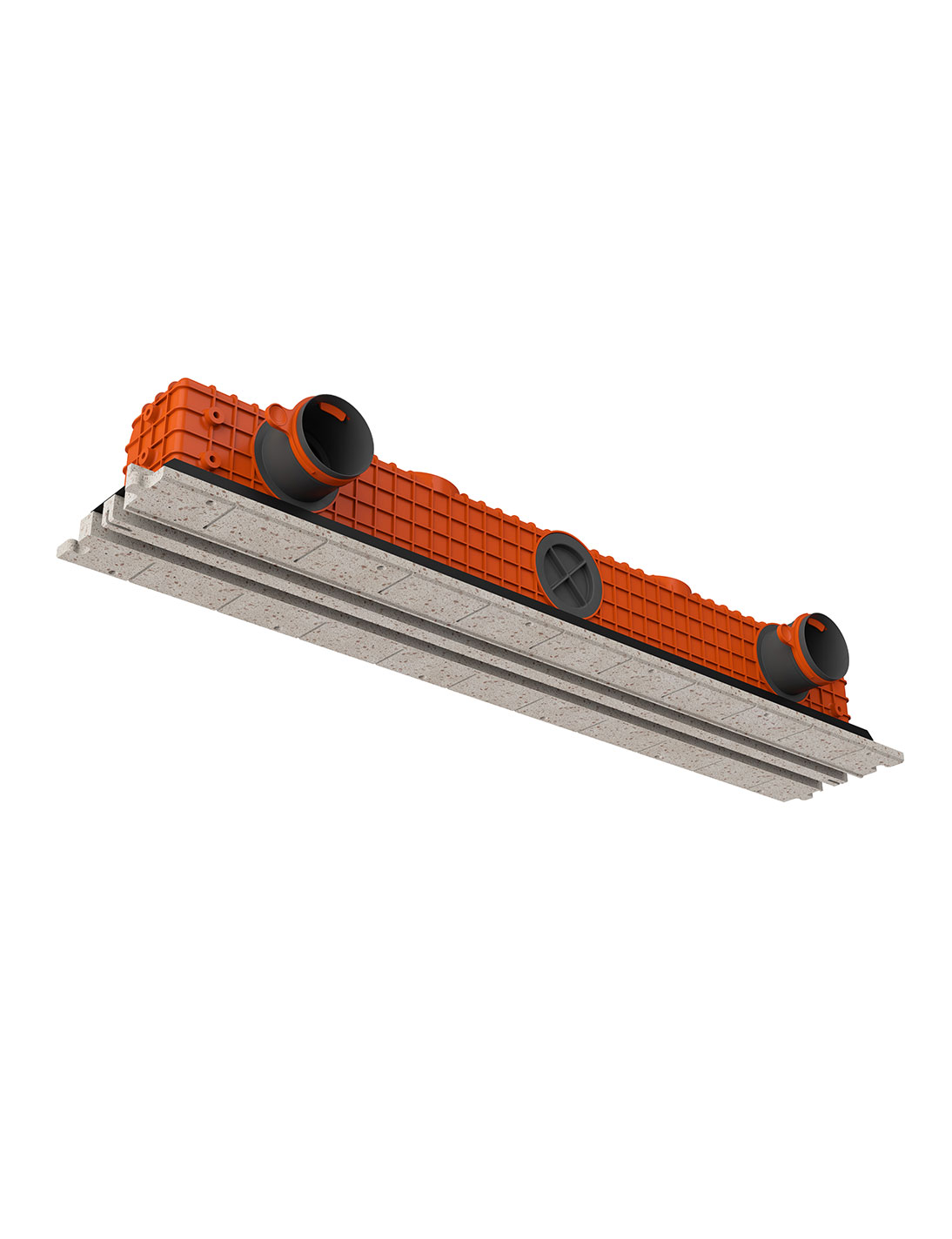

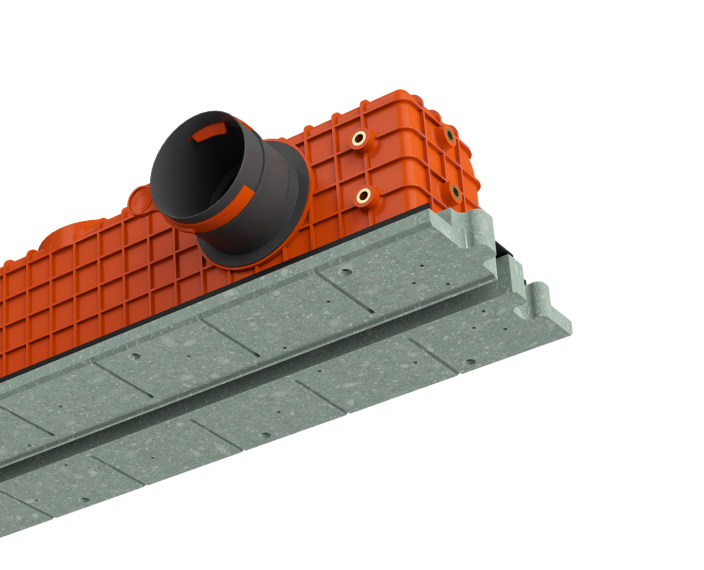

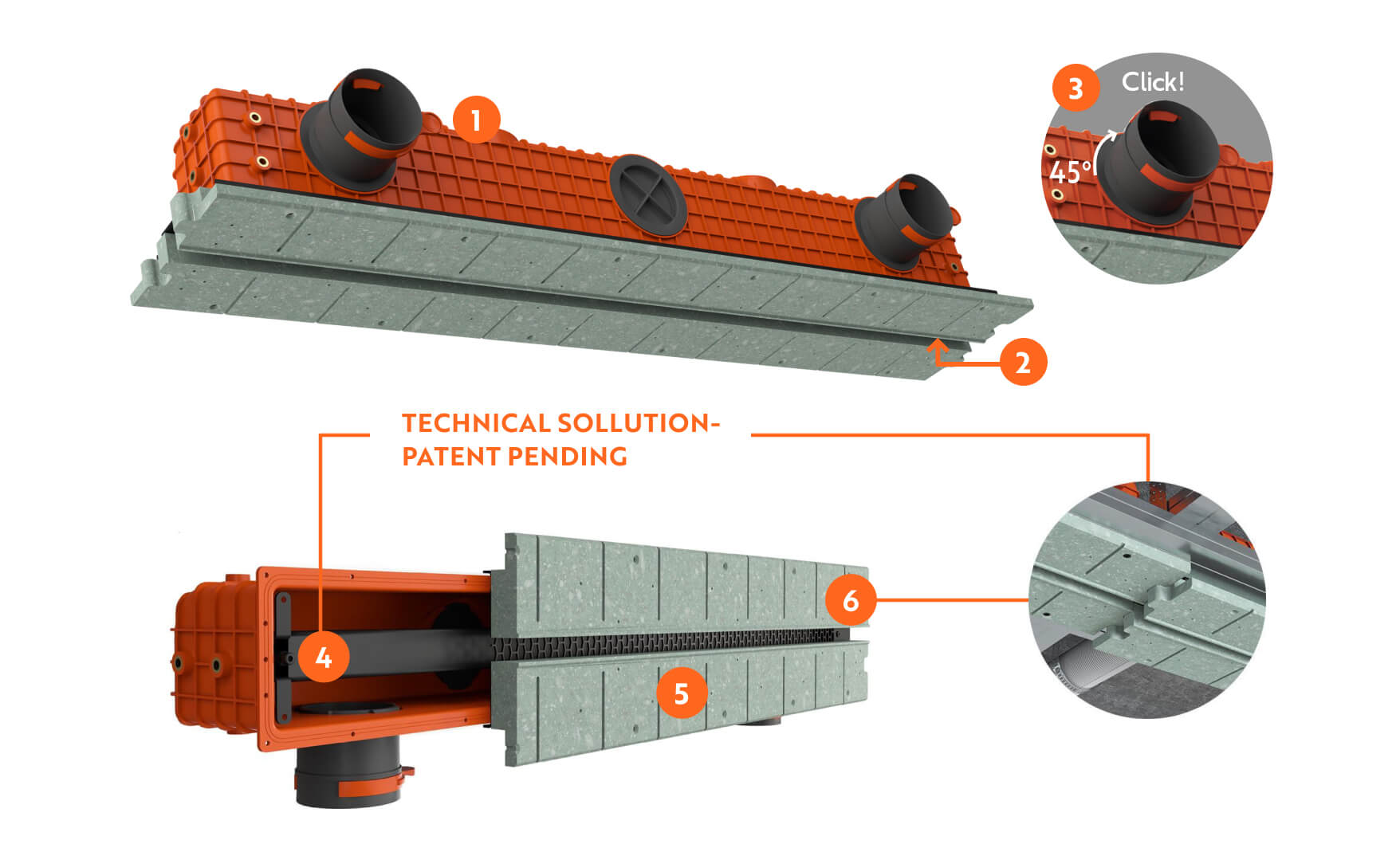

The PUZZLE model for LINEO PRO diffusers offers several advantages, including quick and precise connections between segments for seamless installation. It allows for easy, single-person installation and is fully concealed within plasterboard ceilings or walls, enhancing aesthetic appeal. The minimal visible slot for airflow maintains a clean look, while the built-in balancing valve enables easy airflow adjustment for optimal performance. Additionally, the materials are environmentally friendly and designed to minimize noise, making them ideal for modern interiors.

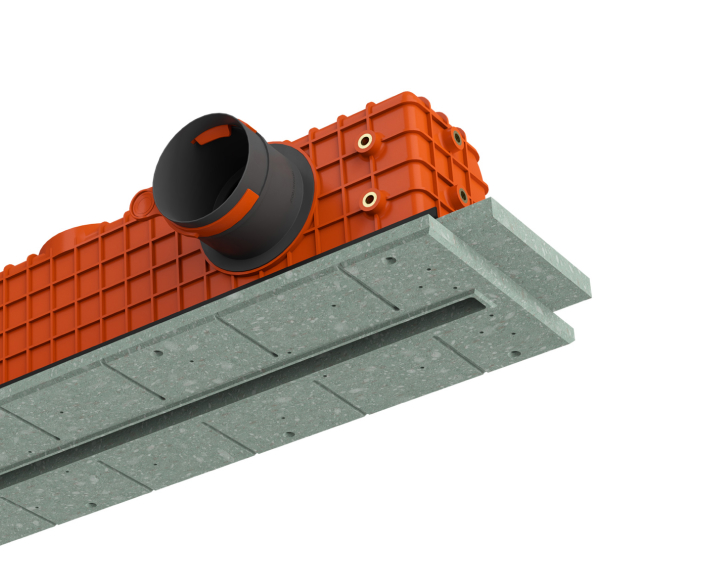

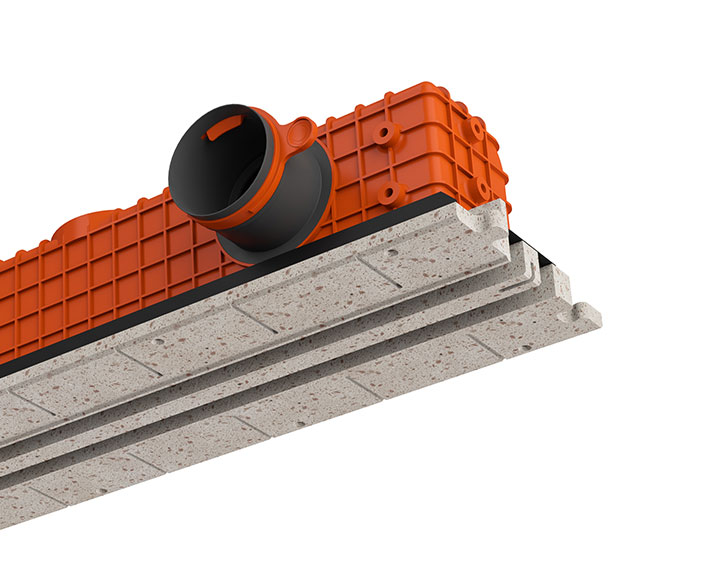

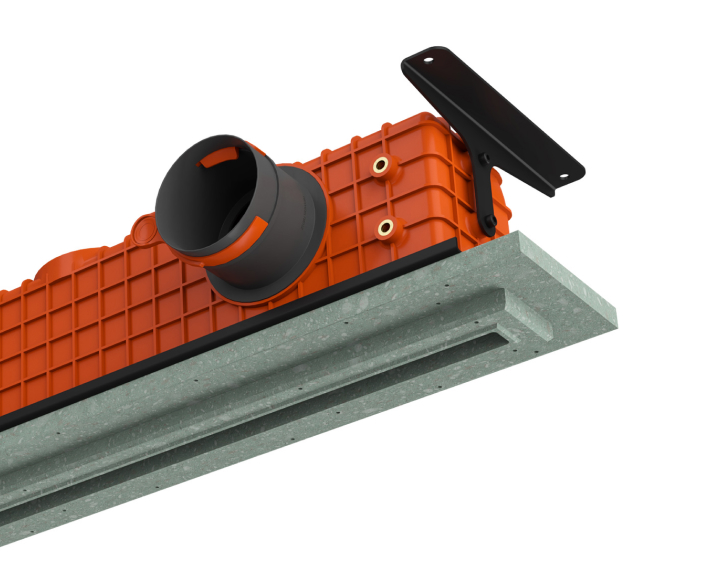

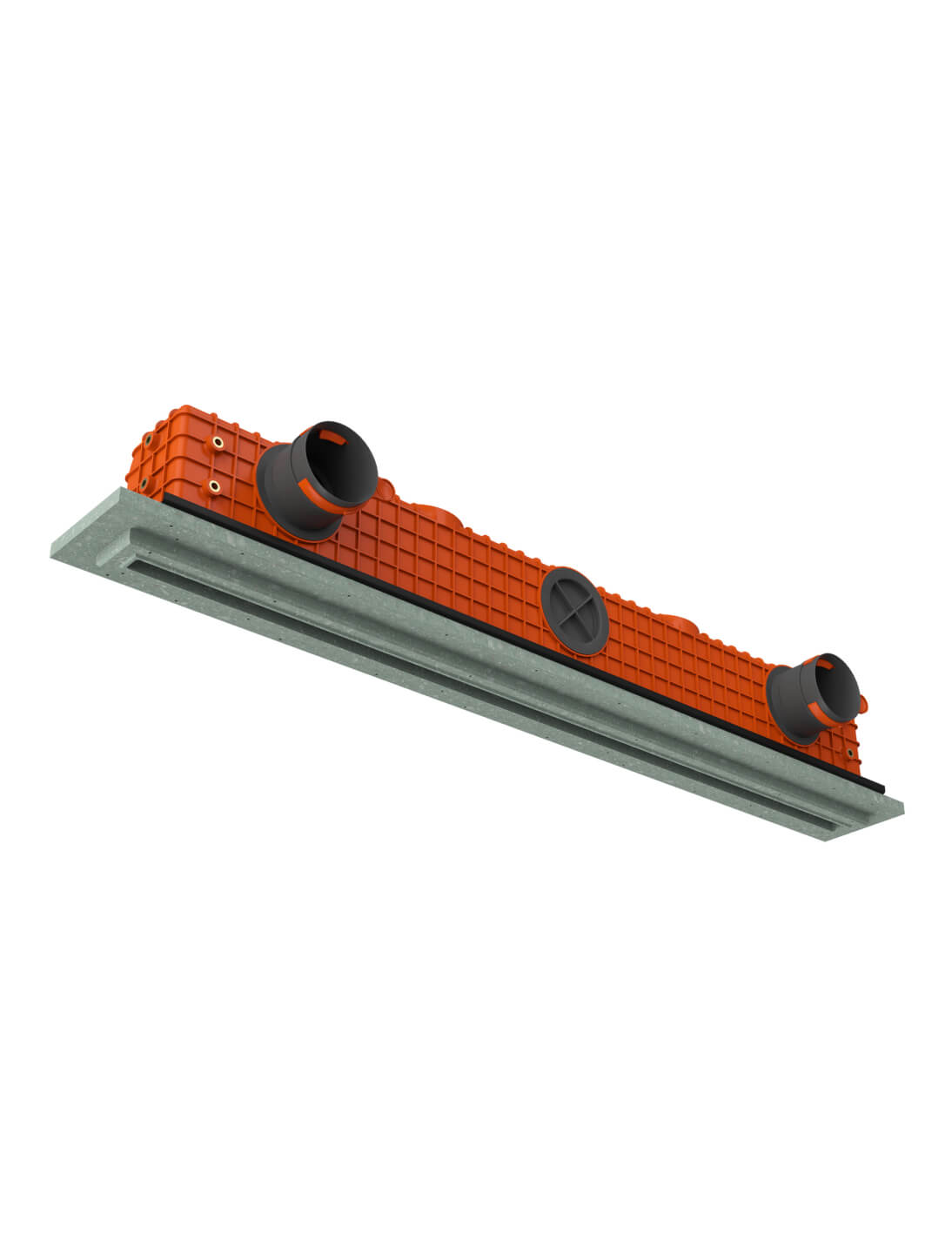

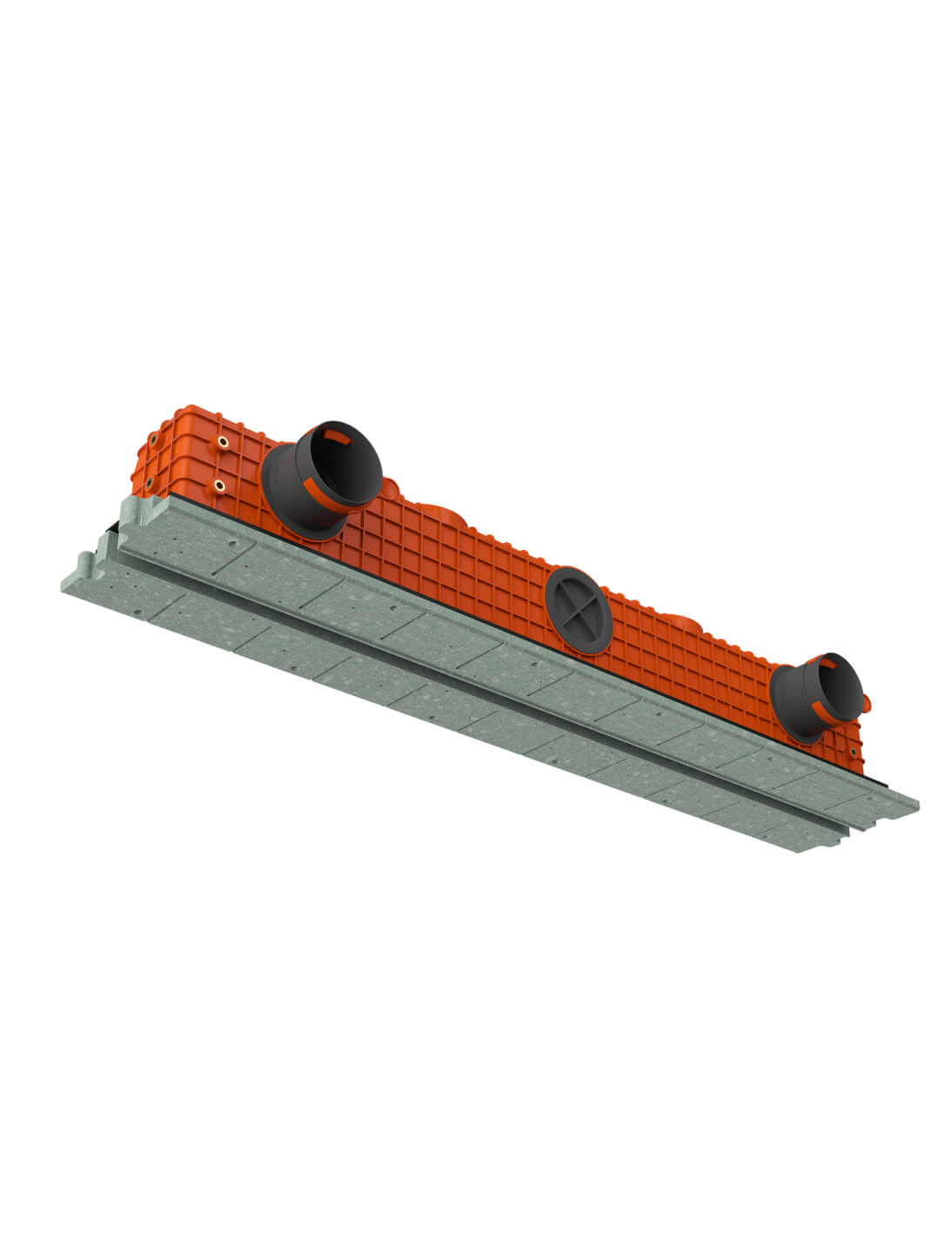

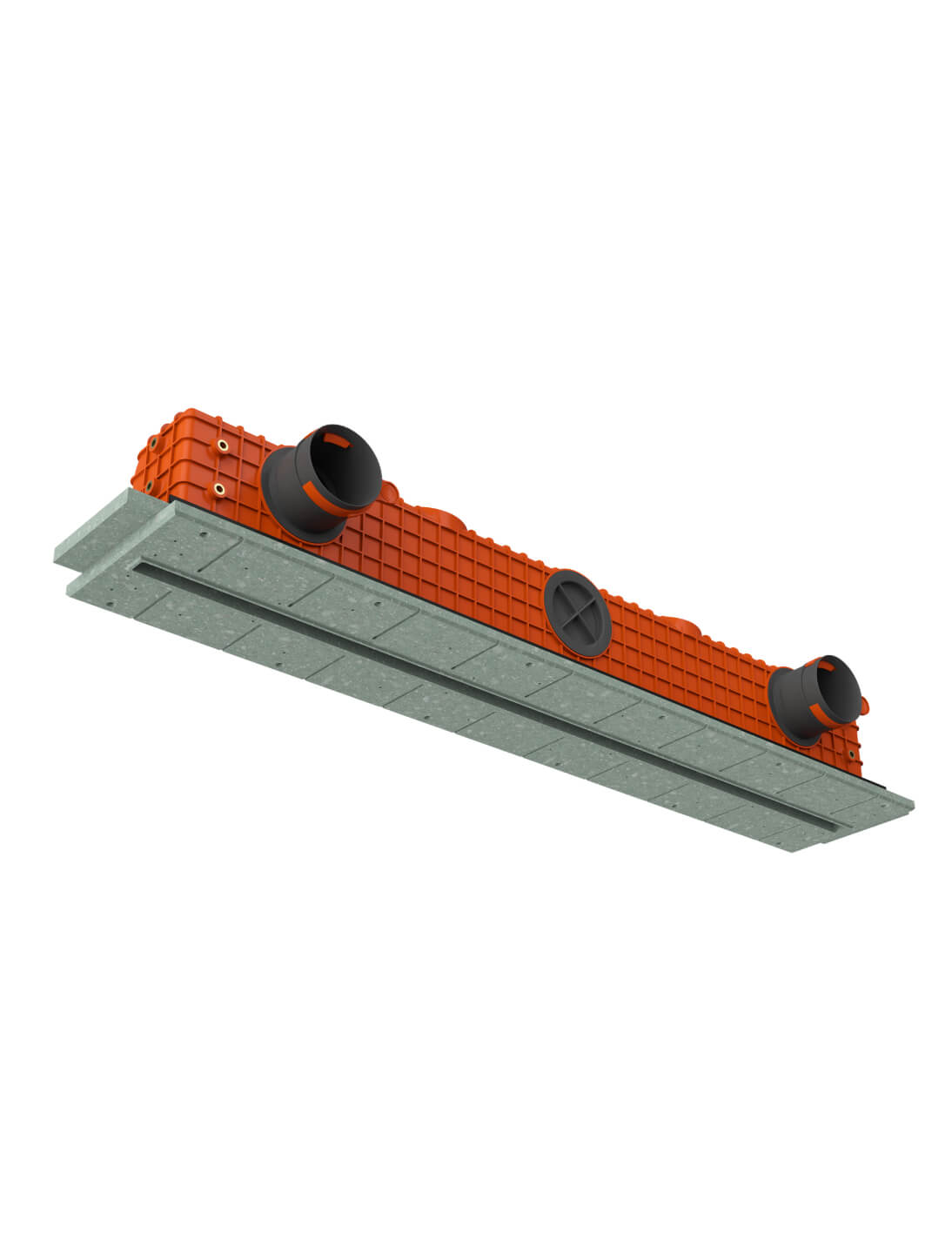

The key differences between the LINEO PRO diffusers primarily involve their installation methods and design features. The SINGLE model is fastened directly to concrete ceilings before the gypsum frame is installed and has a fixed 1-meter length without connection possibilities. The PROFILE model attaches directly to profiles, also with a fixed length of 1 meter, allowing for a convenient and quick fastening process. In contrast, the PUZZLE model features PUZZLE lock technology, enabling precise and quick connections between diffuser segments, allowing for longer continuous runs. This model can be easily installed by one person and is designed for both vertical and horizontal installations. All models are concealed within plasterboard ceilings or walls, leaving only a minimal slot visible for airflow, but the PUZZLE offers enhanced versatility in creating multi-meter systems. Each model is compatible with flexible plastic duct systems of 75 mm, 90 mm or 125 mm, ensuring effective ventilation while maintaining aesthe

To install ERGOVENT LINEO PRO diffusers using the vertical installation method, first ensure you have the appropriate duct system, typically flexible plastic ducts of 75 mm, 90 mm or 125 mm. After fastening, seal any gaps with filler and paint the diffuser to match the ceiling, leaving a minimal slot for airflow. Ensure the diffuser is level for optimal performance. Finally, adjust airflow using the built-in balancing valve inside the diffuser. This method allows for seamless integration into your interior design while providing effective ventilation.

ERGOVENT LINEO PRO diffusers have a built-in balancing valve for easy airflow control. Using a damper balancing stick, you can adjust the valve through the diffuser grill to set the right airflow. The stick shows the settings, making it simple to achieve the ideal air balance, improving comfort and efficiency in ventilation systems.
